added dimension

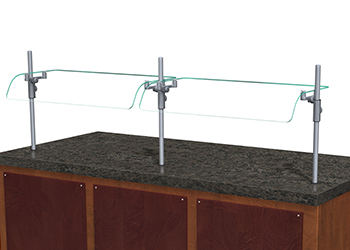

XGuard ushered in a new era of food shield functionality and adjustability standards beyond the basic up and down movement. XGuard’s innovative design adds 10” of back-and-forth adjustability for precise positioning and flexible presentation of your culinary creations.
features
configurations
options
& finishes
& finishes
downloads
adjustable
self-serve
full-serve
lights &
warmers
warmers
nsf®
UL®
- Top to Bottom Height Adjustment – No Special Tools Needed
- Glass Angle Adjustment – No Special Tools Needed
- Quick and Easy Installation
- Simple Care and Maintenance
- Easily Converts to Any Health Code
- High Quality, Precision Die-Cast Components
- Fits Radius or Unique Counter Shapes
- Mounts to Any Counter or Cart
- Shop Drawings and Plans Provided with Every Unit
- Top-Shelf Material Also Available in Any Hard, Decorative Surface (i.e Wood, Metal or Stone)
installation options

SS1: EZ Mount Flange
Above-Counter for 1″ Post; For Stainless Steel Counter
MW1: Heavy-Duty Flange
Above-Counter for 1″ Post; For Millwork Counter
MW2: Narrow Flange
Above-Counter for 1″ Post; For Millwork Counter
SSU3: Heavy-Duty (-H) or Narrow (-N) Flange
Under-Counter for 1″ Post; For Stainless Steel Counter
SSU5: Heavy-Duty (-H) or Narrow (-N) Flange
Under-Counter for 1″ Post; For Stainless Steel Counter
MWU3: Narrow Flange
Under-Counter for 1″ Post; For Millwork Counter
MWU4: Compression Installation
Under-Counter for 1″ Post; For Millwork Counter
MWU5: Heavy-Duty Flange
Under-Counter for 1″ Post; For Millwork Counter
720A/726A: Flange & Cover
Above-Counter for 1-1/2″ Post; For Millwork Counter
725A: Cut Flange
Above-Counter for 1-1/2″ Post; For Millwork Counter
Concealed Fastener
Above-Counter for 1-1/2″ Post; For Millwork Counter
720A/726A: Flange & Cover
Under-Counter for 1-1/2″ Post; For Millwork Counter
720A: Steel Post, with Flange & Grommet
Under-Counter for 1-1/2″ Post; For Millwork Counter
725A/720A: Steel Post, with Flange & Grommet
Under-Counter for 1-1/2″ Post; For Stainless Steel Counterstandard NSF finishes









glass options
standard clear tempered glass
Commonly referred to as safety glass, this glass is heat-treated and then rapidly cooled to produce tempered glass. When it is broken, tempered glass fractures into small fragments that reduce the probability of serious injury.
glass thickness
- 1/4” Tempered Glass (not for shelves) Centerline Max 54”
- 3/8” Tempered Glass (for shelf or span more than 54”) Centerline Max 66”
- 1/2” Tempered Glass (for shelf or span more than 66”) Centerline Max 72”
glass corners
- 1” Radius Corners (standard)
- Square Corners
curved glass
- 1/4” Tempered Glass (not for shelves)
- Maximum length of 78”
